vertical injection molding machine

A vertical injection molding machine is selected when inserts, overmolding or operator loading need a different clamp direction than a horizontal cell. This page explains how the production stage, insert location and injection-unit choice change the RFQ. Injection Molding Machine Sourcing remains an independent sourcing partner; named factories confirm whether their table, shuttle or rotary arrangement fits the actual insert-handling sequence. The horizontal-machine example does not establish this cell layout.

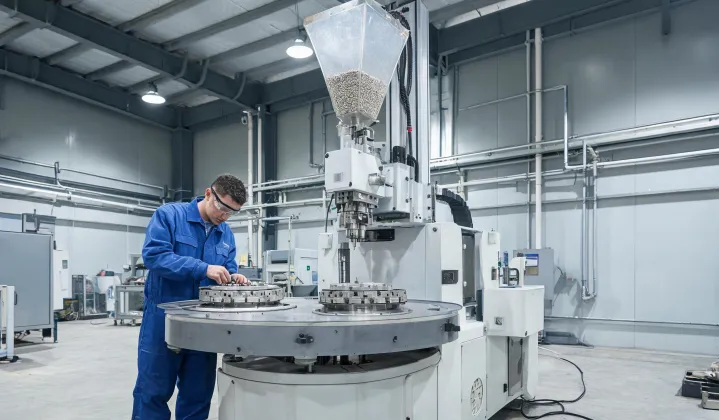

Vertical injection molding machine with rotary table and insert loading area

Production stage

Operating context
Vertical cells are often used when metal, plastic or electronic inserts must sit in the mold before close. The buyer should describe how inserts are located, checked and removed from the loading area, and which injection unit is selected for the resin and shot. Upstream feeders and downstream conveyors belong in the same brief so acceptance is not limited to the press alone. Industry dispute: single machine or integrated line — write the staffing and interface boundary explicitly.
Production stage
Decision point Evidence or question
Production stage: Sample run Use the actual insert and resin, or an agreed representative pair. Record how the insert is located and verified before the vertical mold closes. Empty-table motion is not a fill check. Count acceptable parts after the agreed conditioning period, including insert position and flash at the shut-off.
Site readiness Confirm work envelope, footprint, three-phase supply, cooling water and compressed air demand at the loading height the operator or robot will use. Ask which PLC interface names already exist and whether a shuttle, rotary table or sliding table is included. State quantity, destination and requested delivery window so freight and SAT labor can be marked.
Owner acceptance Owner acceptance should cite insert location evidence and the injection-unit selection for that shot, not a generic vertical catalog page. FAT and SAT stay on the named factory contract. Injection Molding Machine Sourcing coordinates questions; we do not certify insert processes. Continue on inquiry options or mold-and-shot matching.
